Architecture diagram

Description of the tools used in production

Tools and Specs

  • GKE cluster - 1: adidasttestcluster

  • Nodes(compute engine) - 1(due to high cost): gke-adidasttestcluster-default-pool-28f2aa9d-8hh1 with 2CPUs and 3GB

  • Pods - 5(one per service and eventbus)

  • Google cloud build. Triggers a build when code is pushed through skaffold or a build pipeline

  • Google container registry. Manage Docker images, perform vulnerability analysis

  • Google cloud sql - 1: adidas-testdb-instance with 2 CPUs and 4GB

  • Google cloud storage. For storing the built images(can be used to store files if need be)

  • Google stack driver

  • Google cloud iam

  • Google load balancer

  • Google cloud external IP addresses

  • Google cloud DNS

  • Skaffold

  • Travis

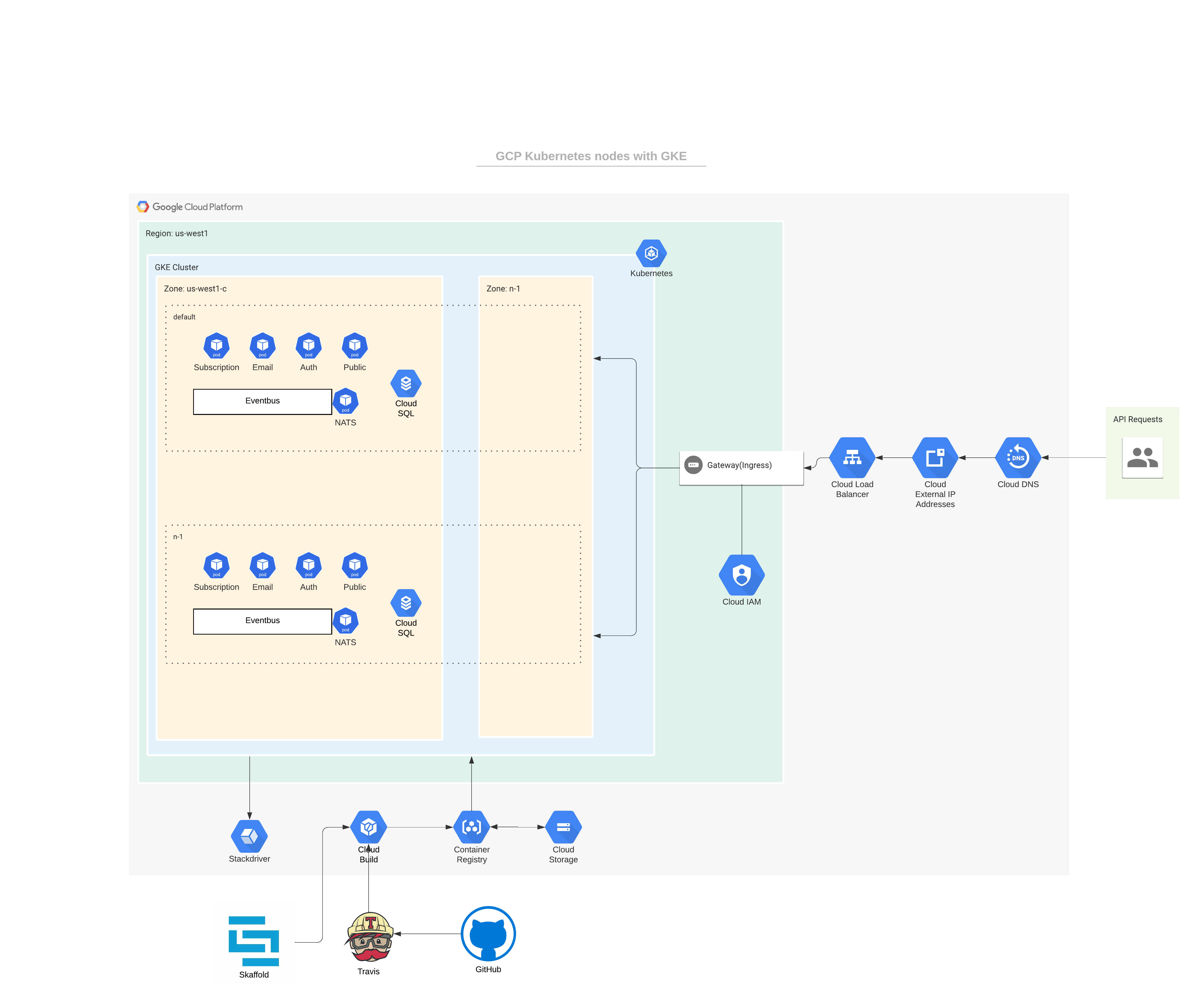

Arch diagram
